無堵塞強自吸移動式柴油機排污泵安裝示意圖
時間：2012-12-29 來源：揚子江泵業 瀏覽數：1538
無堵塞強自吸移動式柴油機排污泵是一種能理想處理含有固體顆粒的污水泵。設計的無堵塞葉輪大能通過76mm大小的固體顆粒。使用方便，只需將泵安裝在污水坑邊并將吸水管伸入液面以下就可工作，能有效替代潛水污水泵和液下泵，無需用任何提升工具起吊泵就能在地面上用普通工具完成安裝、維修、日常維護。有“自吸污水泵之王”之稱，是理想的新一代污水泵產品。適用范圍•雨水和一般污水；•市政排污工程、建筑工地、人防系統排水站；•輕工、造紙、紡織、食品、化工、電業、礦山等工業廢水；•住宅區的污水排放；•水凈化系統的污水及沉淀物；•制革業、屠宰場污水、河塘養殖業；•釀酒業和食糖業；•不具有強腐蝕性但已被嚴重污染的污水排放。運行條件•液體溫度：0 ℃~40 ℃，介質密度≤1.2×10 3 kg/m 3 ，pH值5~9；•介質中固相物的容積比≤2%；•大顆粒直徑：SCP-3 63mm； SCP-4/SP-6 76mm；•環境溫度：≤40 ℃；•海撥：高1000m；。

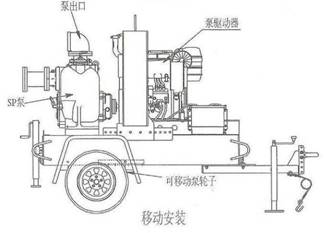

泵安裝示意圖：
技術參數：
| 型號 | 轉速RPM | 流量Q | 揚程H | 配套功率 | 進出口直徑 | 通過顆粒直徑 | 大吸程 | ||
| m3/h | 1/s | m | kW | HP | mm | mm | m | ||
| SCP-2 | 1150 | 15 | 4.2 | 4.0 | 1.1 | 1.5 | 50(2') | 38 | 5.0 |
| 1450* | 20 | 5.6 | 6.5 | 1.5 | 2 | 6.5 | |||
| 1750 | 25 | 6.9 | 9.5 | 3 | 4 | 6.5 | |||
| 2050 | 28 | 7.8 | 13.5 | 4.0 | 5.5 | 6.5 | |||
| 2350 | 32 | 8.9 | 18.0 | 7.5 | 10 | 6.5 | |||
| 2650 | 35 | 9.7 | 23.0 | 7.5 | 10 | 6.5 | |||
| 2900* | 40 | 11.1 | 27.0 | 9.2 | 12.5 | 6.5 | |||
| SCP-3 | 650 | 25 | 6.9 | 2 | 0.75 | 1 | 80(3') | 63 | 1.5 |
| 750* | 30 | 8.3 | 3 | 1.5 | 2 | 1.8 | |||
| 850 | 32.5 | 9.0 | 4 | 1.5 | 2 | 2.4 | |||
| 950* | 40 | 11.1 | 4.5 | 1.5 | 2 | 3.0 | |||
| 1050 | 42.5 | 11.8 | 5.5 | 3 | 4 | 4.0 | |||
| 1150 | 45 | 12.5 | 7 | 4 | 5.5 | 4.9 | |||
| 1250 | 50 | 13.9 | 8 | 4 | 5.5 | 5.5 | |||
| 1350 | 52.5 | 14.6 | 10 | 5.5 | 7.5 | 5.8 | |||
| 1450* | 55 | 15.3 | 11.5 | 5.5 | 7.5 | 6.4 | |||
| 1550 | 60 | 16.7 | 12.5 | 7.5 | 10 | 6.4 | |||
| 1650 | 65 | 18.1 | 14.5 | 11 | 15 | 6.7 | |||
| 1750 | 70 | 19.4 | 16 | 11 | 15 | 6.7 | |||
| 1850 | 72.5 | 20.1 | 18 | 15 | 20 | 7.6 | |||
| 1950 | 75 | 20.8 | 20 | 15 | 20 | 7.6 | |||
| 2050 | 80 | 22.2 | 22.5 | 18.5 | 25 | 7.6 | |||
| 2150 | 85 | 23.6 | 24.5 | 18.5 | 25 | 7.6 | |||
| SCP-4 | 650 | 40 | 11.1 | 3 | 1.5 | 2 | 100(4') | 76 | 1.5 |
| 750* | 45 | 12.5 | 4 | 1.5 | 2 | 2.4 | |||
| 850 | 53 | 14.7 | 5 | 2.2 | 3 | 4.9 | |||
| 950* | 60 | 16.7 | 6 | 3 | 4 | 5.8 | |||
| 1050 | 65 | 18.1 | 7.5 | 5.5 | 7.5 | 6.7 | |||
| 1150 | 72 | 20 | 9 | 5.5 | 7.5 | 7.3 | |||
| 1250 | 80 | 22.2 | 10.5 | 7.5 | 10 | 7.6 | |||
| 1350 | 85 | 23.6 | 12.5 | 11 | 15 | 7.6 | |||
| 1450* | 100 | 27.8 | 13.5 | 11 | 15 | 7.6 | |||
| 1550 | 110 | 30.6 | 15.5 | 15 | 20 | 7.6 | |||
| 1650 | 115 | 31.9 | 18 | 18.5 | 25 | 7.6 | |||
| 1750 | 120 | 33.3 | 20 | 22 | 30 | 7.6 | |||
| 1850 | 130 | 36.1 | 22.5 | 30 | 40 | 7.6 | |||
| 1950 | 135 | 37.5 | 25 | 30 | 40 | 7.6 | |||
| SCP-6 | 650 | 100 | 27.8 | 3.5 | 3 | 4 | 150(6') | 76 | 2.4 |
| 750* | 125 | 34.7 | 4.5 | 4 | 5.5 | 2.7 | |||
| 850 | 150 | 41.7 | 5.5 | 7.5 | 10 | 3.6 | |||
| 950* | 160 | 44.4 | 7.5 | 7.5 | 10 | 4.2 | |||
| 1050 | 180 | 50 | 9 | 11 | 15 | 5.5 | |||
| 1150 | 200 | 55.6 | 10 | 15 | 20 | 6.4 | |||
| 1250 | 220 | 61.1 | 12.5 | 22 | 30 | 6.4 | |||
| 1350 | 230 | 63.9 | 15 | 30 | 40 | 6.7 | |||
| 1450* | 250 | 69.4 | 17 | 30 | 40 | 7.0 | |||
| 1550 | 280 | 77.8 | 18 | 37 | 50 | 7.6 | |||
| SCP-8 | 650 | 200 | 55.6 | 6 | 7.5 | 10 | 200(8') | 76 | 2.7 |
| 750* | 230 | 63.9 | 8 | 11 | 15 | 3.7 | |||
| 850 | 260 | 72.2 | 10 | 15 | 20 | 4.6 | |||
| 950* | 300 | 83.3 | 12 | 22 | 30 | 5.2 | |||
| 1050 | 320 | 88.9 | 15 | 30 | 41 | 6.1 | |||
| 1150 | 350 | 97.2 | 18 | 37 | 50 | 6.4 | |||
| 1250 | 400 | 111.1 | 20 | 55 | 75 | 6.7 | |||
| 1350 | 450 | 125.0 | 23 | 75 | 102 | 7 | |||
| 1450* | 500 | 138.9 | 26 | 75 | 102 | 7 | |||
| SCP-10 | 650 | 250 | 69 | 6.5 | 11 | 15 | 250(10') | 76 | 2.1 |
| 750* | 300 | 83 | 8.5 | 15 | 20 | 3.4 | |||
| 850 | 350 | 97 | 11 | 22 | 30 | 4.3 | |||
| 950* | 400 | 111 | 13 | 30 | 41 | 5.2 | |||
| 1050 | 450 | 125 | 16 | 45 | 61 | 5.5 | |||
| 1150 | 500 | 139 | 19 | 55 | 75 | 5.5 | |||
| 1250 | 525 | 146 | 23 | 75 | 102 | 5.8 | |||
| 1350 | 550 | 153 | 27 | 90 | 122 | 6.7 | |||
| 1450* | 600 | 167 | 31 | 90 | 122 | 6.7 | |||
